A brief history of 3D printing in medicine

By May 18, 2020

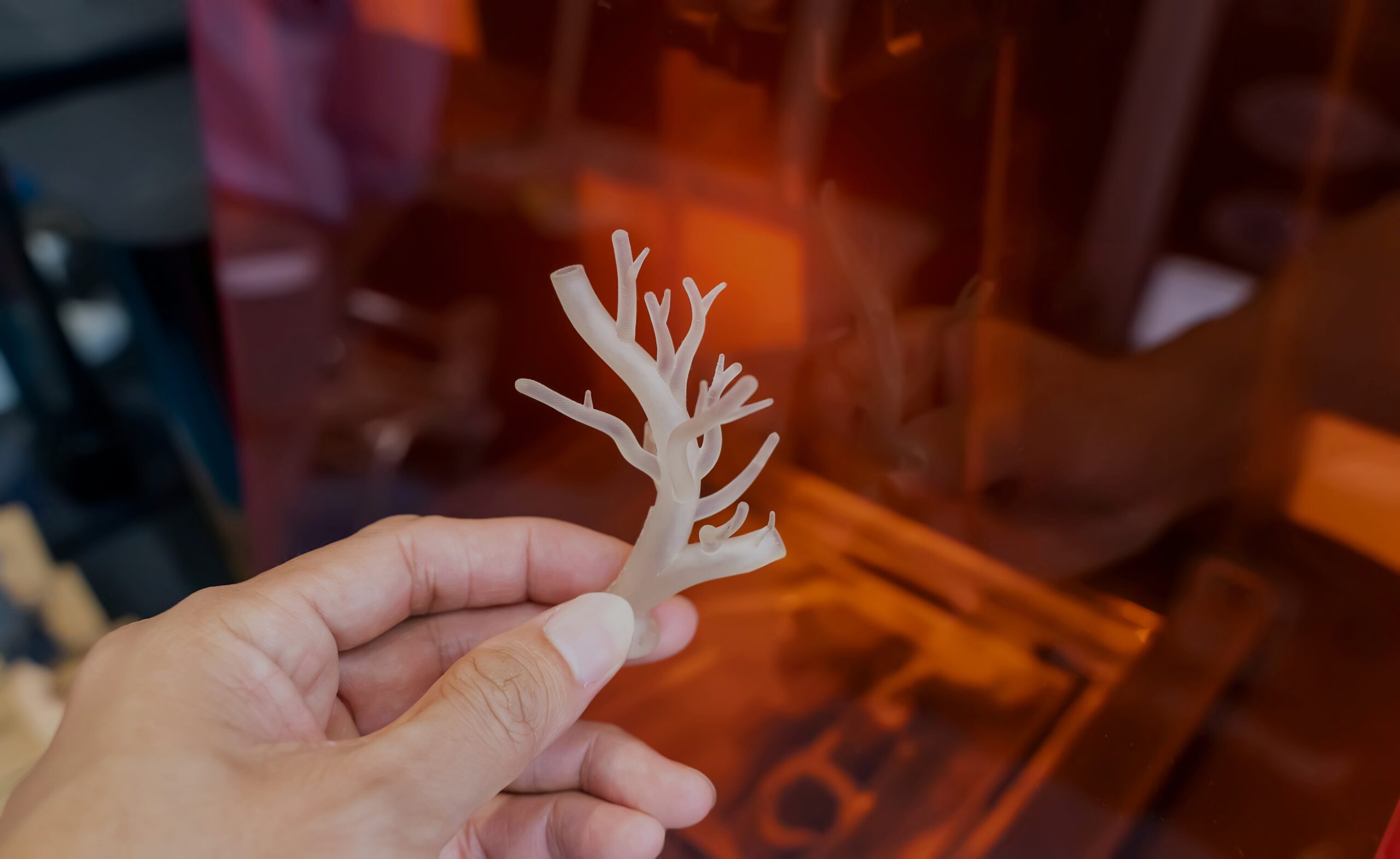

3D Medicine Hero scaled

3D printing was pioneered by Charles W. “Chuck” Hull, who had the idea to use computer-aided design software to create three-dimensional objects. Hull built a machine that used a UV laser to engrave layers of acrylic into shapes before stacking the layers to build objects. He patented the “apparatus for production of three-dimensional objects by stereolithography” in 1984, marking the birth of 3D printing.

In the three decades since, 3D printing has found applications across industries, including healthcare. As 3D printing becomes more advanced and more economically accessible, its medical applications continue to broaden. 3D printing can even be credited with some of medicine’s most impressive recent advancements, including 3D-printed vascular tissue, prosthetic devices, and bones, as well as a slew of medical devices, including surgical guides, pacemakers, and more.

How 3D printing has helped transform healthcare

The healthcare industry was one of the earliest adopters of 3D printing technology. As early as the late 1990s and early 2000s, 3D printing was being utilized to produce dental implants and custom prosthetics, surprising even Charles Hull, who admitted to never having anticipated 3D printing’s effect on medicine. Since then, the technology’s medical applications have evolved considerably, particular in the last half decade.

Because 3D printing is agile, allowing for rapid iterations and alterations, it’s uniquely suited to products like prosthetics and dental implants, which demand both high customization and low volume production. For example, Coapt, a Chicago-based company that produces myoelectric pattern recognition systems for upper limb prostheses, uses additive manufacturing technology to build fully responsive prosthetic arms, customized to each patient’s biology.

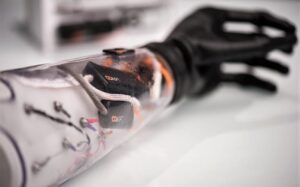

Coapt’s completely redesigned, innovative medical device.

3D printing offers the potential to transform other fields of medicine, as well, particularly orthopedics. With 3D printing, orthopedic surgeons are able to create structures that perfectly mimic a patient’s biology, which may one day aid in eliminating the discomfort and degradation associated with “one size fits all” artificial bone implants. While 3D-printed bones aren’t in regular clinical use, the success of several headline-making implants has demonstrated the technology’s progress and promise.

Where we’re going: 3D-printed biomaterials

While 3D-printed bio-devices such as prosthetics and bones have been tried, tested, and put into practice, the next frontier in medical 3D printing, organic mimetic devices, remains on the horizon. In the early 2000s, a team of researchers at Boston Children’s Hospital successfully built replacement bladders of collagen and synthetic polymer by hand using a construction method called “scaffolding.” They layered the scaffolds with cells from the trial’s patients, allowing them to grow into functioning organs. Seven years after the organs were implanted, all of the trial patients remained in good health.

Unfortunately, building organs in this manner is not only incredibly costly, but also extremely time-intensive. Seeking a less time-consuming and more easily replicable means of producing synthetic organs, a research fellow named Dr. Anthony Atala founded the Wake Forest Institute for Regenerative Medicine (WFIRM) in 2004. Soon after, WFIRM researchers began experimenting with 3D printing synthetic human organs, eventually developing machines capable of consistently printing organs and tissues for use in clinical trials.

However, despite the relative success of synthetic bones, 3D-printed organs remain far from ready for clinical use. The gap between experimental synthetic organs and clinically viable ones may lie at the cellular level; that’s why researchers are attempting to apply 3D printing to living cells, replicating human tissues. In 2019, a team of Brazilian researchers successfully bioprinted “organoids” that perform all of the functions of the human liver, including building proteins, storing vitamins, and secreting bile.

These miniature livers aren’t yet ready for transplantation, but many experts believe that, as soon as we can successfully replicate human tissue via 3D printing, the path to creating fully-functioning human organs will be cleared — and medicine will be forever changed.

The future of medical 3D printing

It is difficult to overstate the potential that 3D printing has to transform healthcare. As additive manufacturing technology becomes more accessible and more affordable, meaningful medical innovation seems more achievable than ever before — and it’s increasingly clear that 3D printing services will play an important role in revolutionizing medicine in the next decade and beyond.

Primed for on-demand manufacturing, 3D printing allows medical researchers to create small volumes of parts for niche applications — and to pivot quickly when new needs arise, as in the case of the COVID-19 pandemic.
