Stop over-engineering: Converting metal parts to plastic

Engineers often rely on metals to create robust products because they are strong, typically corrosion resistant, thermally stable, and are fairly well understood across the engineering community. Given advances in highly engineered thermoplastics and thermosets, manufacturing techniques, and digital design tools, plastics are more capable than you might imagine. It is possible that you are over-engineering your part by making it out of metal and missing out on the many favorable properties of plastics.

Things to consider

In order to decide if your part is a good candidate for conversion from metal, it is important to understand the performance requirements of your product. What are the operating conditions? What are the loading cases? How much creep/fatigue is acceptable? What are the specifications surrounding chemical and UV resistance? Your part may have non-negotiable requirements that make them unsuitable for conversion, but the wide range of material properties and plastic varieties in the market make finding a suitable alternative easier than ever before.

Strong enough

Although plastics don’t have the strength of metal, certain plastics are strong enough for many applications. For example, Cyanate Ester, a proprietary polymer made for Carbon’s® Digital Light Synthesis (DLS) technology, has high heat deflection, strength, and stiffness. In particular, the stiffness is comparable to a glass-filled nylon and has been used to replace some legacy metal components where cost or weight are more important considerations. Thoughtful redesign making use of complex structural features such as ribs and gussets might allow you to convert your part from metal to plastic and still meet your functional requirements.

In some cases, plastic parts may even perform better than metal parts. Metal parts with complex geometries sometimes require secondary processes like welding separate components together to achieve the final geometry. Welds introduce points of potential weakness and corrosion, whereas a plastic component can be produced as a single piece without these flaws, as seen in the picture below.

3d Printed Impeller vs steel impeller

Performance gains

Today’s plastics also offer a wide array of functional benefits. For example, gears are good candidates for conversion, because the right plastic might not require external lubrication, which metal often does. Additionally, in a highly corrosive environment the plastic part might have longer lifetime and ultimately out-perform its metal counterpart.

Other functional benefits of plastic include improved sealing, vibration, sound dampening, and electrical and thermal resistivity. Plastic manufacturing methods also achieve higher tolerances than sheet metal or casted components. Lastly, plastic manufacturing methods give you more control over the aesthetics of your product, allowing you to customize colors, add custom logos, or apply textures.

Saving money and time

There are many cost savings to uncover through redesigning metal parts. An obvious example is in aerospace, where mass reduction of mere ounces translates to meaningful dollars. Other areas where you might find savings include:

  • Material and time savings from eliminating the need for additional coating or painting required for many metal parts
  • Cost savings from increased material efficiency of near net-shape processes
  • Time and labor cost reduction achieved through assembly consolidation made possible with molding and 3D printing

Here’s an example of real cost savings from our business. Air ducts are great candidates for part consolidation because geometry and airflow can be optimized with additive. Fast Radius manufactures the cooling duct in the HP 500/300 printer series using HP MJF. By consolidating eight parts (primarily metal) into one, HP was able to simplify their supply chain and lower the component cost by 30 percent.

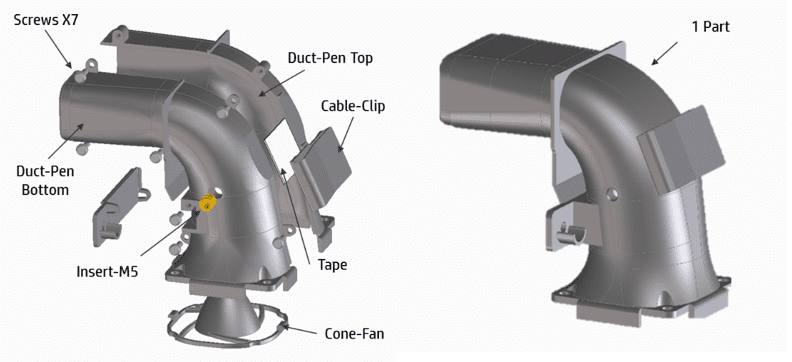

HP air duct
The original air duct (left) was redesigned as one part (right)



Molding or printing?

Many factors play into the decision of which plastic manufacturing process to use. The following factors provide guidance on when to consider additive manufacturing over traditional molding techniques.

  • Lead time – While tooling up for molding can take months, additive manufacturing drops the lead time to days or weeks, which can accelerate your product launch.
  • Breakeven point – Many molding processes require high volumes to make sense financially due to high tooling and setup costs. At lower volumes, additive manufacturing provides significant cost savings.
  • Design freedom – Additive manufacturing makes previously un-manufacturable designs possible, unlocking lots of value. Adding complex structural features such as lattices, organic geometries, and customization across parts.

Make it better

Just because something works doesn’t mean you shouldn’t try to make it work better. Converting metal parts or assemblies to plastic can be a great place to find efficiency and cost savings in your BOM. Here at Fast Radius, we’ve helped countless companies improve product design and performance by converting from metal to plastic. For example, we converted the traditional heat exchanger to Cyanate Ester and got a 2x improvement in heat-transfer. We also helped Bastian Solutions create a lighter arm for its materials-handling robot by making a single part additively with PA 12 instead of an assembly primarily comprised of metal.

So, the next time you are designing a metal part, we challenge you to stop and ask yourself: could this part be made better with plastic?

Do you want to stop over-engineering your metal parts? Reach out to the experts at Fast Radius, who can help you identify parts, redesign them, and manufacture them more efficiently.
