How and why to use sacrificial tooling

Though traditional manufacturing techniques can effectively produce basic shapes with uniform cross-sections, creating parts with hollow interiors or complex geometries presents unique challenges. However, with sacrificial tooling, designers and engineers don’t need to compromise on shape or material integrity.

Sacrificial tooling involves printing a structure in a soluble material, which is then used to create complex structures. This technique enables designers and engineers to easily create complex or hollow structures — featuring any kind of undercut — with smooth interiors out of numerous materials. Sacrificial tooling is usually performed via fused deposition modeling (FDM), which enables high accuracy and repeatability.

How sacrificial tooling works

Sacrificial tooling begins with a two-part design: a design of the tool, and a design of the final part. Of course, these two designs are essentially flip sides of the same coin; the sacrificial tool is designed to fill the interior of the final part. The tool should be built first, with allowances to promote fluid flow once it comes time to dissolve the tool.

Image Gallery ST 130 Sacrificial Tooling Step3

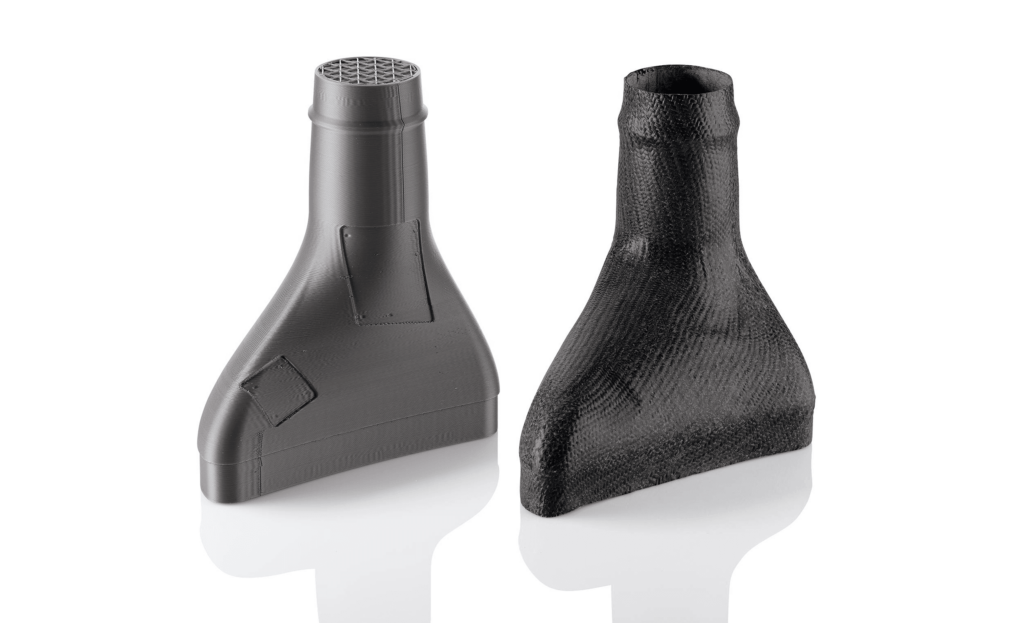

A design of the final part and of the sacrificial tool (Image courtesy of Stratasys).

Once the tool has been constructed and the final part fitted around it, no further preparation is needed besides sanding to improve the surface’s finish and the application of resin to encourage even dissolution of the tool. With that complete, the part should be fully submerged into a removal detergent, which will dissolve the tool and leave the final part intact.

Advantages and limitations of sacrificial tooling

Sacrificial tooling is often favored by designers and engineers not only because it allows for the creation of complex structures with any number of materials, but also because it guarantees a shorter production time than many other manufacturing methods. In addition, it results in a product with no bonded seam. Other advantages of sacrificial tooling include:

  • Forms undercuts without the need for complex slides in the tool
  • High heat- and pressure-resistance
  • Eliminates need for additional tooling
  • Offers ability to quickly iterate designs
  • Limited manual labor required
  • Shortened lead time for low volumes
  • Design-to-part time of days, rather than months
  • Increased allowance for product complexity
  • Improved economic sustainability

Best-fit applications for sacrificial tooling

Certain industries and applications are especially well-suited for sacrificial tooling, particularly those that require complex parts made of strong, heat-resistant materials, but that don’t require high production volume. Further, sacrificial tooling is ideal for creating products that fully enclose the part. FDM technology is most commonly used to create complex parts with hollow interiors, such as complex ductwork.

Image Gallery ST 130 Sacrificial Tooling 2

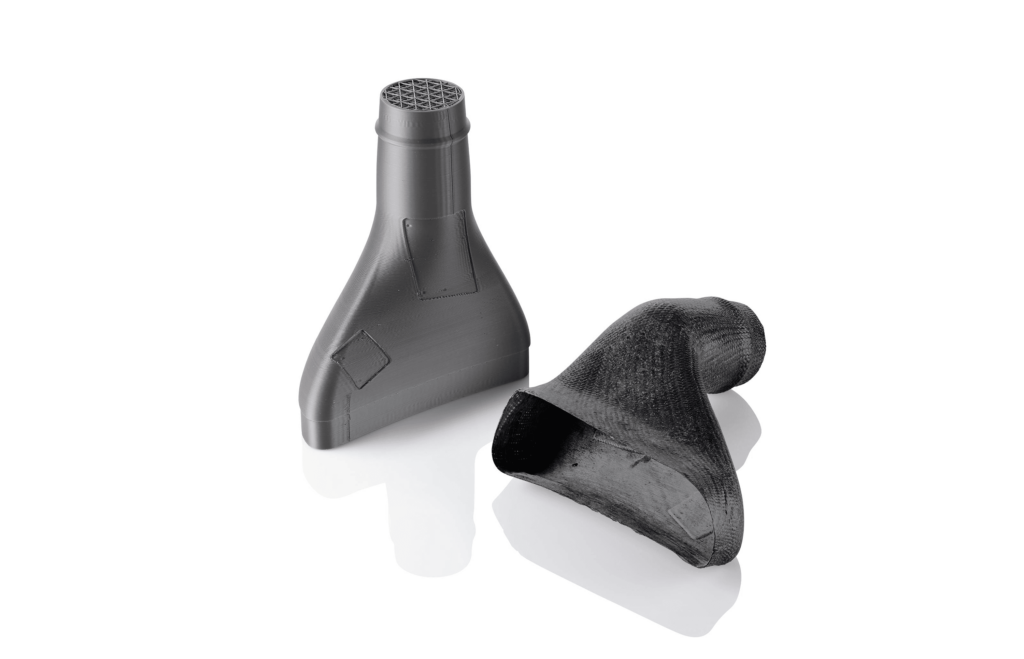

Ducts are common parts created with sacrificial tooling (Image courtesy of Stratasys).

The aerospace and automotive industries see a range of common use cases for sacrificial tooling. Aircraft require incredibly strong, highly detailed parts, and sacrificial tooling helps achieve both of those goals. Similarly, the motorsports industry requires complex, specialized, strong, and lightweight parts.

Key design considerations for sacrificial tooling

When considering sacrificial tooling, designers and engineers should pay particular attention to two material characteristics: the coefficient of thermal expansion, and the cure temperature and pressure pairings.

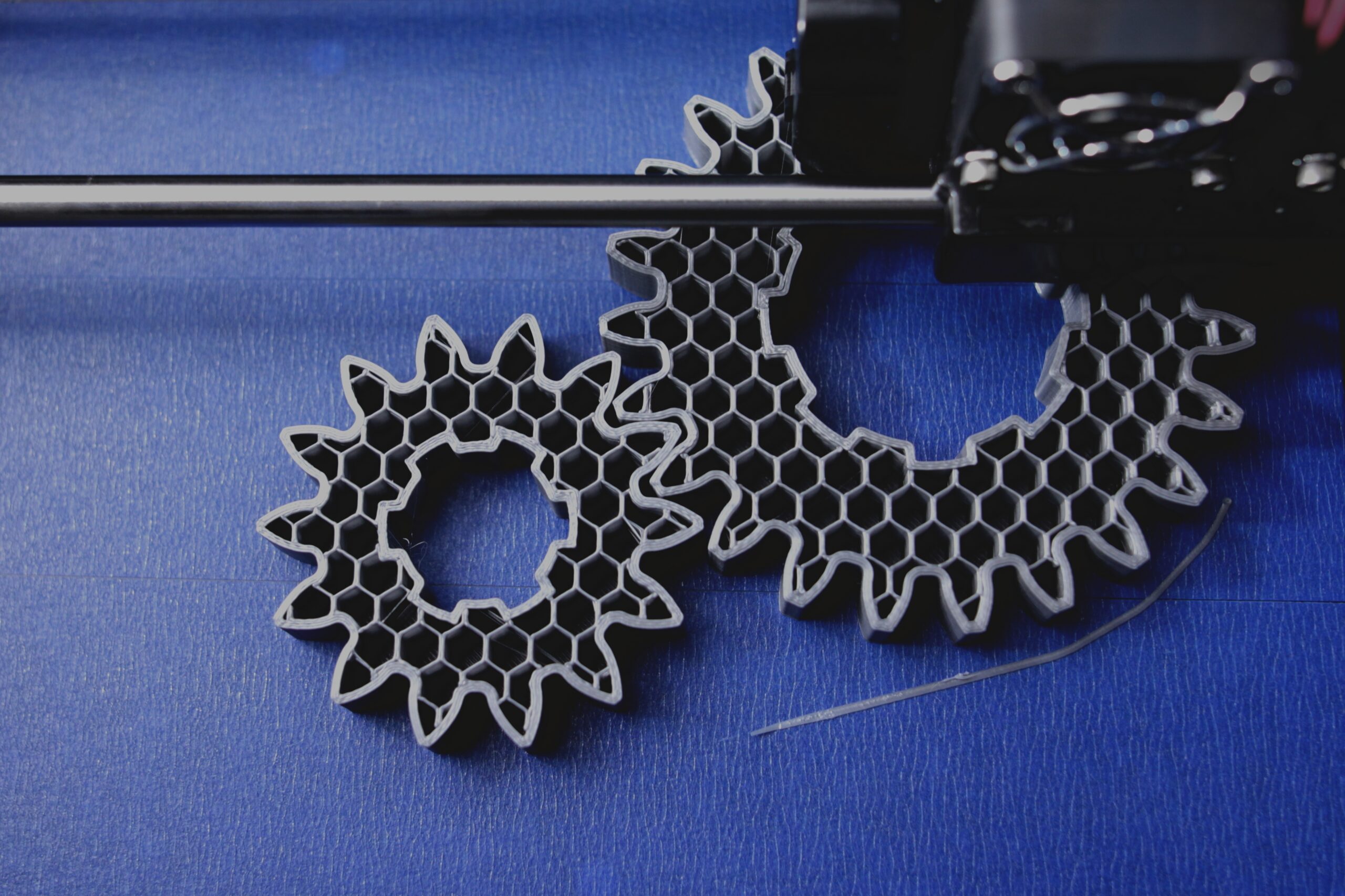

Beyond the material’s characteristics, designers and engineers need to choose between two design styles: a sparse interior fill pattern or shell style. Sparse style is most commonly used, and in most cases, provides the optimal balance between build time and tool strength. Shell style, however, uses less build material and is especially effective when using an envelope bagging process.

It’s also important to choose the optimal orientation when manufacturing a part via sacrificial tooling. Tools can be built in a vertical or horizontal orientation, but the selected orientation will affect build speed, surface quality, support material requirements, and overall performance. The tool’s end-use application should be carefully considered during the design phase to determine the best build orientation.

A partner in FDM sacrificial tooling

For designers and engineers looking to build complex parts with hollow interiors, FDM sacrificial tooling offers a reliable, simple, and cost-effective method. Unlike traditional tooling methods, which require complex assembly or expensive, fragile wash-out tools, FDM sacrificial tooling is hands-off, versatile, and relatively simple.
