CNC prototyping service

Use computer-controlled machining technology to design and make prototype parts with automated speed and precision.

Rapid CNC prototyping

Our CNC manufacturing capabilities allow you to create prototypes with high dimensional accuracy and excellent mechanical properties from a variety of metals and plastics. Manufacture on-demand with our 3-axis and 5-axis CNC mills, or our CNC turning process, and receive your prototype parts when you need them.



Our CNC prototyping process is simple: upload your CAD file to our Cloud Manufacturing Platform™, optimize your design with our expert engineers, and move to production when your project is ready.



Learn more about our on-demand manufacturing services with our full range of CNC manufacturing capabilities.

Our CNC machining technologies

Our CNC prototyping capabilities include automated milling and turning services:

Milling

CNC mills are effective for geometric designs and rapid production requirements. Our CNC prototyping capabilities include both 3-axis and 5-axis mills.

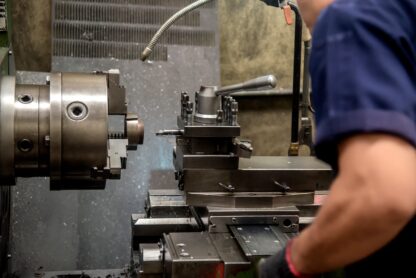

Turning

CNC turning is a process in which an automated lathe shapes a rotating workpiece. Turning is useful for rounded or cylindrical geometries.
CNC Machining

Design considerations

Optimize your CNC machined prototype with the following design considerations, materials, and finishing and post processing options:

General process information

3-Axis Milling

5-Axis Milling

Turning

Max. Part size
  • 2000 x 1200 x 500 mm
  • 78.7 x 47.2 x 19.6 in
  • 2000 x 1200 x 500 mm
  • 78.7 x 47.2 x 19.6 in
  • Ø 350 x 600 mm
  • Ø 13.8 x 23.6 in

Min. Part size

  • 12.7 x 12.7 x 12.7 mm
  • 0.5 x 0.5 x 0.5 in
  • 12.7 x 12.7 x 12.7 mm
  • 0.5 x 0.5 x 0.5 in
  • 6.4 x 6.4 x 6.4 mm
  • 0.25 x 0.25 x 0.25 in
Min. Feature size
  • Ø 1 mm
  • Ø 0.039 in
  • Ø 1 mm
  • Ø 0.039 in
  • Ø 1 mm
  • Ø 0.039 in
Standard tolerance
Metals
  • +/-0.13 mm
  • +/-0.005 in
  Plastics
  • +/- 0.20 mm
  • +/- 0.008 in

Metals

  • +/-0.13 mm
  • +/-0.005 in



Plastics

  • +/- 0.20 mm
  • +/- 0.008 in

Metals

  • +/-0.13 mm
  • +/-0.005 in



Plastics

  • +/- 0.20 mm
  • +/- 0.008 in

Lead time

As low as 8 days for
less than 50 parts

As low as 10 days for

less than 50 parts

As low as 8 days for
less than 50 parts

CNC machining materials

Plastic
  • ABS
  • Nylon 6
  • Acetal (Delrin)
  • Polycarbonate
  • PVC
  • HDPE
  • PTFE (Teflon)
  • PEEK
  • Nylon 30%GF
  • UHMW
Aluminum
  • 2024
  • 6061
  • 6082
  • 7050
  • 7075
Stainless Steel
  • 303
  • 304
  • 316
  • 17-4
  • 420

Other Steel

  • Mid steel
  • Alloy steel
  • Tool steel

Other Metal

  • Brass
  • Copper
  • Titanium
  • Contact us for additional metal machining options

Finishing and post-processing options

As machined (standard)



Anodizing



Powder coating

Bead blasting


Brushing



Painting

Polishing


Screen printing



Engraving

Heat treating


Passivating



Plating

Black oxide

Get a quote for your CNC prototyping project

Create a Fast Radius account for rapid quotes on prototype parts.

Why prototype with CNC machining?

The CNC machining process offers unique prototyping benefits:

Design potential

Unlock the potential of your CNC prototyping project: our 3-axis and 5-axis milling capabilities offer automated speed and precision, and enable complex geometries and angles.

Virtual iteration

Work with Fast Radius engineers to iterate your CNC machining prototypes on our Cloud Manufacturing Platform™. Optimize your design virtually, and move to production quickly.

Fast turnaround

CNC machining is best suited to full production runs: we can manufacture your CNC prototype quickly, and scale up cost-effectively when you’re ready to move to a higher volume order.

Versatility

Manufacture CNC prototypes in a variety of materials, including plastic and metal, and choose from a number of finishing and post-processing options to suit your end-use.

CNC prototyping applications

Precise and quick to produce, CNC machined parts serve a spectrum of industrial applications:

Complex dimensions

Our CNC machining services are ideal for creating prototype parts with features located along or around axes, or parts with radial holes, grooves, and slots.

Niche manufacturing

Prototype in metal and plastic for niche manufacturing applications. CNC machining is suited to oblong or cylindrical parts, and to complex parts that need to be cut from multiple axes.

Cogs and magnifying glass

Automotive

CNC machining is ideal for creating functional automotive prototypes quickly, to exacting industry certification standards.

Hybrid manufacturing

Create prototypes for hybrid manufacturing projects, including multiple components in metal and plastic.

Box on carousel

Explore CNC machining news and industry updates

Find CNC machining insight on the Fast Radius blog:

4 best practices for CNC prototyping

How to save on CNC machining

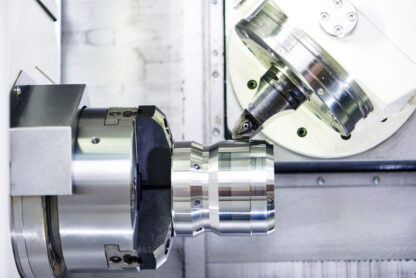

5 of the most common myths about CNC machining
