Overmolding service

Manufacture parts with multi-shot thermoplastic injections for enhanced consistency, strength,
and durability in high volume projects.
White down arrow

What is overmolding?

Overmolding is an injection molding process in which multiple shots of thermoplastic are injected separately to create a single part. The first thermoplastic injection into a tool or cavity forms a substrate, before an overmolding material is injected into, onto, or around it. The thermoplastic layers bond as they cool to produce a unified and highly durable final product. The bond between substrates depends on the properties of the relevant overmolding materials. Learn more about the bonding process with our material compatibility chart.



Overmolding is ideal for high-volume production runs. Kickstarting your injection molding project is simple. Upload your CAD file to the Fast Radius Cloud Manufacturing Platform™, optimize your design and choose your desired thermoplastic, and then greenlight production with the click of a button.



For more on-demand manufacturing options, browse our injection molding capabilities, including our insert molding services.

Design considerations

Unlock the potential of your overmolding project with the following injection molding design considerations, including tooling details, available materials and colors, and finishing and post-processing options.

Overmolding general process information

Substrate wall thickness
  • The thickness of the substrate’s wall determines how effectively the overmold material flows in, on, and around the substrate. Due to temperature differences between substrate and overmold materials, having an inconsistent wall thickness can lead to warping, increase flash, and render fills incomplete.
  • Ensure that the wall thickness of the substrate and thickness of the overmold are even and consistent from the beginning of the process. Wall thicknesses ranging from 0.060″ to 0.120” (1.5 mm-3 mm) will ensure good bonding in most overmolding applications.

Substrate wall thickness

  • The thickness of the substrate’s wall determines how effectively the overmold material flows in, on, and around the substrate. Due to temperature differences between substrate and overmold materials, having an inconsistent wall thickness can lead to warping, increase flash, and render fills incomplete.
  • Ensure that the wall thickness of the substrate and thickness of the overmold are even and consistent from the beginning of the process. Wall thicknesses ranging from 0.060″ to 0.120” (1.5 mm-3 mm) will ensure good bonding in most overmolding applications.

Maximum part size​

  • 800 x 800 x 400 mm
  • 31.5 x 31.5 x 15.7 in
Minimum part size
  • 5 x 5 x 5 mm
  • 0.2 x 0.2 x 0.2 in
Standard tolerance
  • +/-0.010 per 1 in linear dimension
Lead time
  • As low as 2 weeks for T1 samples
  • After T1 sample approval, lead time for <10,000 parts is as low as 1 week

Tool validation

  • Standard process is to produce a small set of T1 samples for approval before initiating full production

Maximum press size

  • 800T

Minimum order size

  • 100 parts and $5000

Set-up fee

  • $500 per mold per order (applies to sample runs
    after initial T1 samples or engineering changes)

Overmolding tooling information

Rapid tooling

  • Molds with steel cavity and core with a shot life of 5,000-10,000 shots
  • Typically machined in 2 weeks
Production tooling
  • Steel tool with shot life up to 1M shots
  • Ability to integrate side-pulls or cam-actions
  • Typically machined in 3 weeks
Multi-cavity or family molds
  • Multiple identical cavities or family of parts machined into a single tool
  • Allows for more parts to be produced per shot, minimizing unit costs

Overmolds

  • Premade parts are placed into the mold and molded over
  • Allows for multi-material injection molding

Overmolding materials

Most common materials

Acrylonitrile Butadiene Styrene (ABS)

Polyethylene (PE)

Polypropylene (PP)

Polycarbonate (PC)

Other supported materials

Nylon (PA 6, PA66, PA 12)

Polycarbonate/Acrylonitrile Butadiene
Styrene (PC/ABS)

Polyurethane (PU)

Polymethyl Methacrylate (PMMA/Acrylic)

High Density Polyethylene (HDPE)

Low Density Polyethylene (LDPE)

Polystyrene (PS)

Polyvinyl chloride (PVC)

PEEK

POM (Acetal/Delrin)

Polyethylene Terephthalate (PET)

Thermoplastic Elastomer (TPE)

Thermoplastic Vulcanizate (TPV)

Polyetherimide (PEI)

Polysulfone (PSU)

Inquire for additional options

Additives and fiber

UV absorbers

Flame retardants

Plasticizers

Colorants

Glass fibers

Overmolding colors, finishing,
post-processing

Colors

Pantone color matching

RAL color matching

Finishing and post-processing options

Standard SPI finishes (A2-D3)

Mold-tech textures also available

Pad printing

Inserts (e.g. heat stake inserts)

Light assembly

Protective packaging / film

Get an instant quote for your
overmolding project

Use our quoting platform for quick quotes on injection molded parts.

Why choose overmolding?

Overmolding produces strong, long-lasting parts for improved component reliability.
Explore the key benefits and challenges of the process:

Benefits

  • Strong, durable parts
  • High consistency and precision
  • Customization potential
  • Cosmetic finishing options
  • Create safe, comfortable parts for customer end-use
Check symbol

Challenges

  • Requirement to check compatibility between thermoplastic materials
  • Precision set-up required to prevent fractures.
  • Requires 2 mold cavities to produce the substrate and the overmold
  • Upfront design and tooling costs
cross symbol

Overmolding applications

Overmolding is used to produce customized parts and components for a variety
of applications:

Niche manufacturing

The overmolding process is useful for the manufacture of niche, durable parts, including gaskets, filters, and brackets. Overmolding is also suitable for functional prototyping.

Blue cogs icon

High-volume production

Overmolding produces consistent parts quickly with low tooling costs, and is ideal for projects with high volume production requirements.

Overmolding icon

Medical devices

The overmolding process is capable of creating specialized parts with complex dimensions, making it particularly useful for manufacturing medical devices and instruments, and high-end consumer-grade products.

Blue hand icon

Ergonomic features

Overmolding offers a range of customisation and finishing options, and can be used to add grips, buttons, knobs, and other ergonomic features to pre-existing parts while minimizing additional labour.

Blue chair icon

Explore overmolding news and
industry updates

Find industry news, resources, insight into the overmolding process, and more, on the
Fast Radius blog:

Plastic injection molding: From material options to when to use it

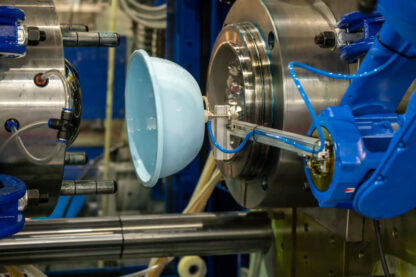

What you need to know about material compatibility for multi-material injection molding
